Hub to suit Lenco Wide wheel 12” 14” and 14” knobby
Other related items available separately.

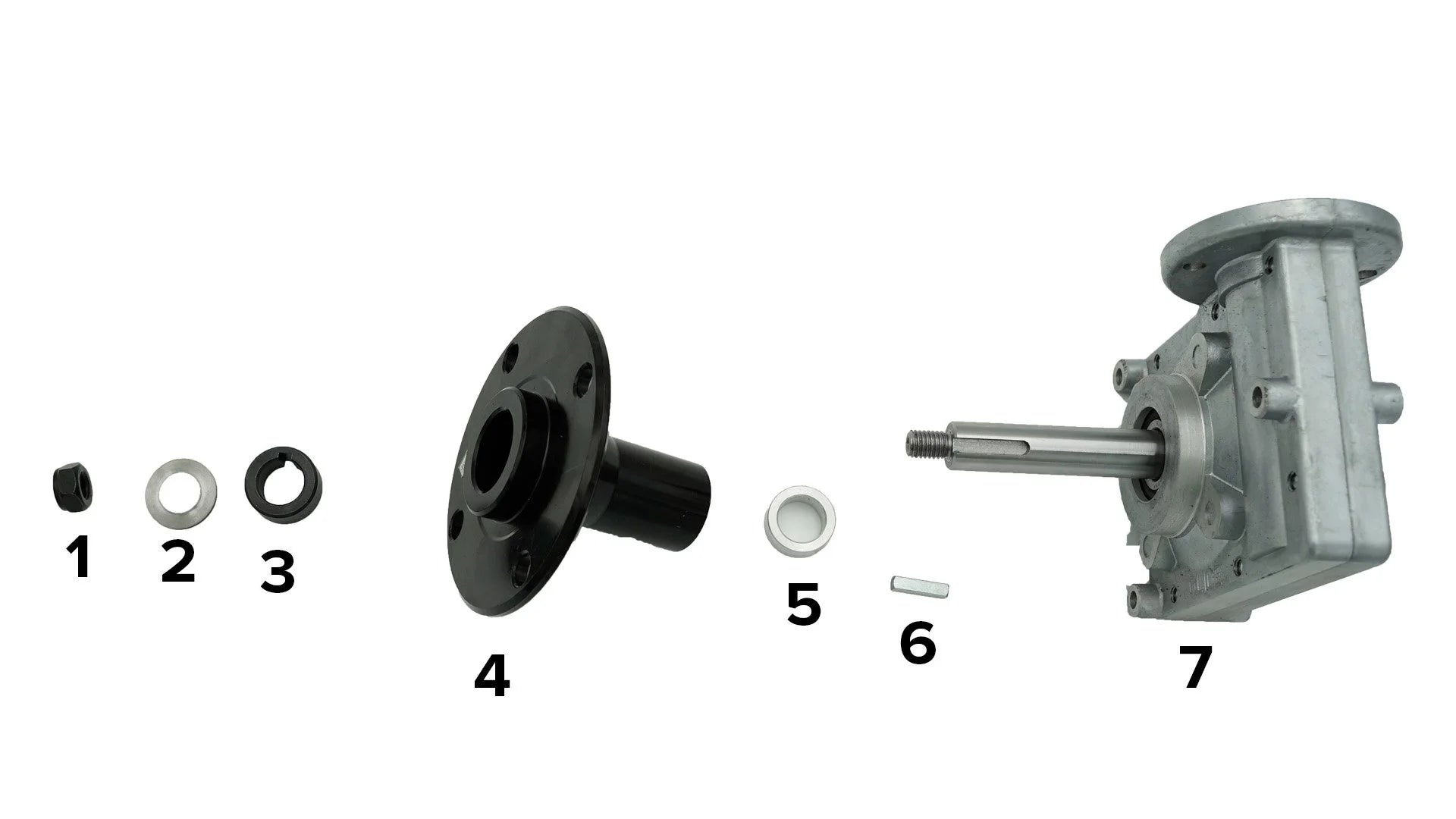

For 12” and 14” wide wheels
1 783862-B NYLOC M10 T TYPE BLACK ZP
2 310572 WASHER - FIXED HUB 28*10
3 310573 SPACER - keyed for 12"& 14" wide wheel - HUB V2 - 25*12
4 310090-2 HUB 145/70-6 DRIVE WHEEL Centro-XT 14 Wide V1 & V2
5 310029 SPACER Gearbox axle Centro
6 860507 KEY 5mm x 21mm - Centro fixed Hub
7 64599 GEARBOX left side Centro
or
a. 64598 GEARBOX Right side Centro (not shown)
For Drive wheel XT 145/70-6 14” (knobby tyre) ONLY
1 783862-B NYLOC M10 T TYPE BLACK ZP
2 310572-S WASHER – Stepped FIXED HUB 28*10
4 310090-2 HUB 145/70-6 DRIVE WHEEL Centro-XT 14 Wide V1 & V2
5 310771 SPACER Gearbox 23mm axle Centro (not shown)
6 860507 KEY 5mm x 21mm - Centro fixed Hub
7 64599 GEARBOX left side Centro
or
b. 64598 GEARBOX Right side Centro (not shown)
