Hub Assembly for 145/70-6 Wheel 310090

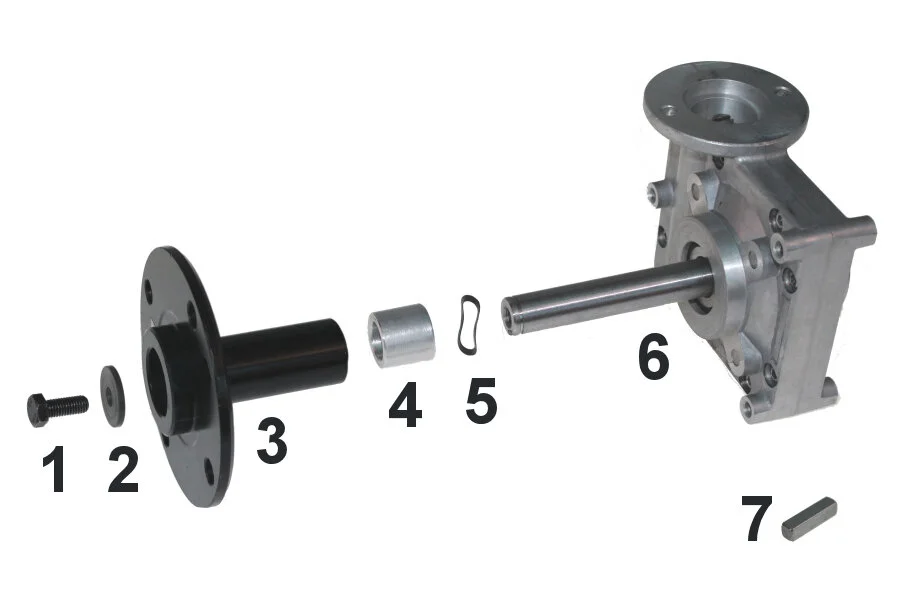

Hub 310090 Other related Items 1.) 784011 Bolt M8x20 2.) 310570 Washer (23 * 8 * 2 ) XT 145/70-6 wheel 3.)310090 Hub 145/70-6 wheel ( 4 holes on 89mm PCD) 4.) 310571 Spacer XT hub ( length = 23mm ) 5.) 782518 Wave washer 6.) 64596-XT or 64597-XT Gearbox for XT 7.) 860507 Key 5x20mm Centro hub
Important fitting instructions.
Always use thread locking compound (Loctite ™ 277) or similar to M8 bolt when re fitting wheel on gearbox shaft. Tension M8x20 bolt. Torque = 25 N-M. Apply small amount of grease to gearbox shaft and hub when re-fitting hub.
310090
