TiltGlide

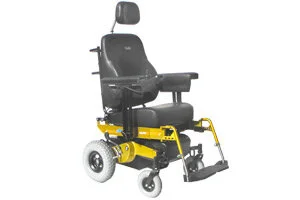

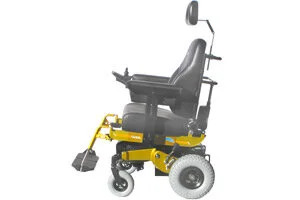

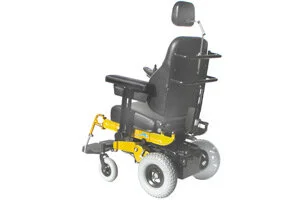

The TiltGlide Electric Wheelchair features a powered seat tilt to make it easier to get in and out of the chair. It has a unique centre-of-gravity compensation system that allows for the seat to glide forward, increasing stability when used with power tilt.
The adjustable width and depth seating system provides maximum comfort control, and the efficient battery allows a travelling distance of up to 25km on a single charge.
Choose from an extensive colour palette for the ultimate customisation.
Samurai Sunset
Acid Green
Emerald Green
Mist Green
Neon Yellow
Silver Shadow
Textured Black
Gloss Black
Black Onyx
Vivid Orchid
White
Safely Yellow
Merlot Red
Firestorm Red
Outback Red
Horizon Blue
Electric Blue
Island Blue
Fluro Pink
Description
The TiltGlide wheelchair features the adjustable width and depth seating system that allows for individual sizes and, when used with a seating module, allows for the seating system to be moved back for better weight distribution. It also features the unique center of gravity compensation system that allows for the seat and back to glide forward, increasing stability when used with power tilt.
Specifications
| Max Recommended User Weight | 175kg – AS3695 |
|---|---|
| Chair weight | 90kg |
| Rear Wheels | 4.10 – 3.50 Pneumatic (Wide) |
| Front Castors | 200 x 50 (8″ Pneumatic) |
| Drive Castors | Rear |
| Suspension | CTS |
| Overall Length | 115cm |
| Overall Width | 43cm chair width = 67cm overall width |
| Seat Frame | Adjustable in width and depth. |
| Seat Width | 37, 40, 43, 46, 49, 52, 55cm (custom) |
| Seat Depth | 37, 40, 43, 46, 49, 52, 55cm (custom) |
| Seat Tilt | 28 degrees. Adjustable Strut |
| Seat Recline | 90 to 135 degrees. Adjustable Strut |
| Seat Rest | Folds down for easier transporting. |
| Seat Upholstery | As per your specification |
| Arm Rests | Sliding pad and adjustable in height. |
| Leg Rests | Detachable swing aways, plastic footplates |
| Frame Colour | Choose from Glide colour range |
| Brakes | Electromagnetic and manual attendant |
| Controls | Dynamic DX Europa G90A |
| Battery | 2 x 12V 38Amp/hr Gel cell (205L x 175w x 180H) |
| Charger | 24V 8 Amp |
| Range | 25 Km |
