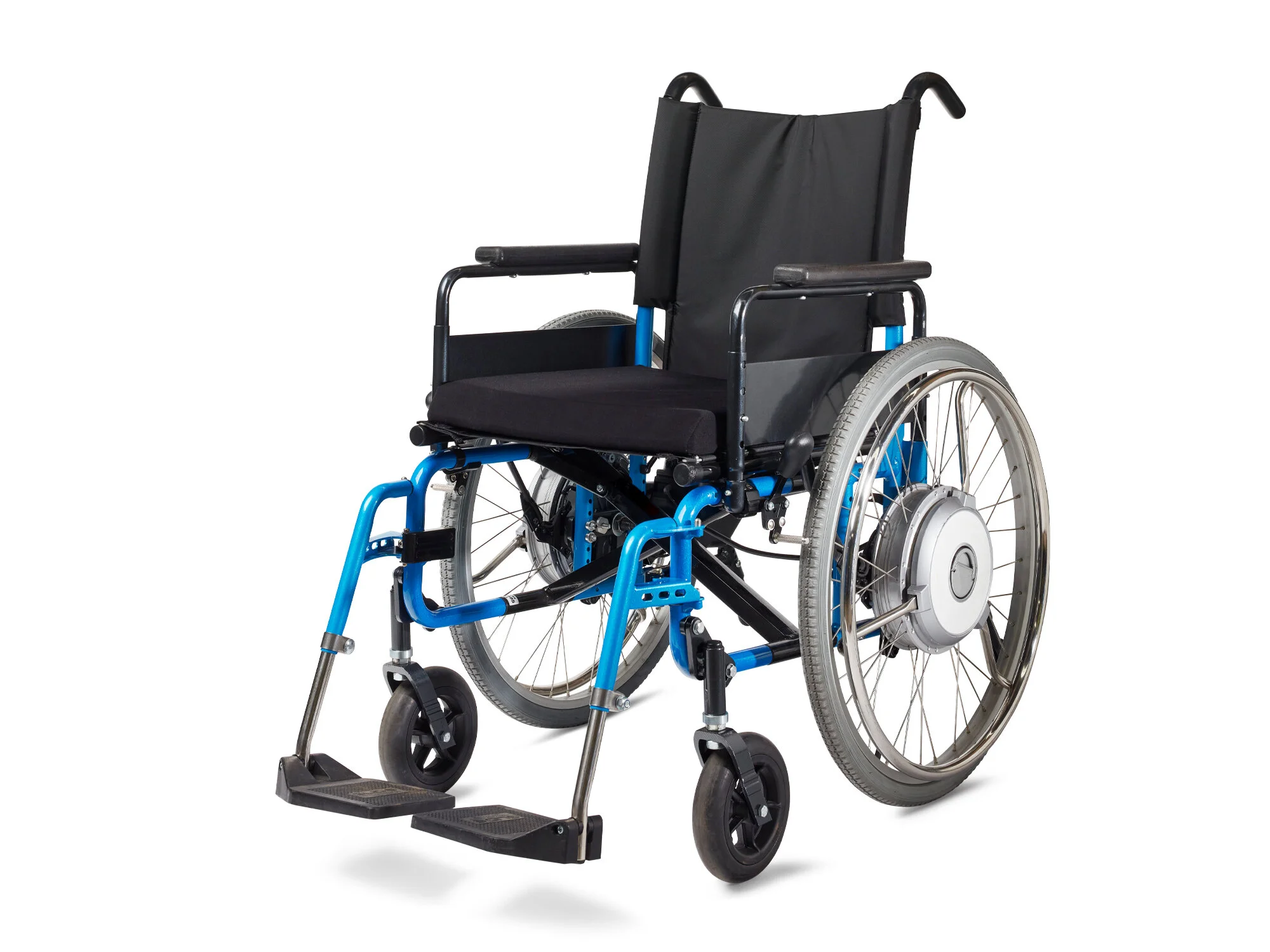

BoostGlide
Power Assist System

The BoostGlide operates like a manual wheelchair, but has a power assist motor to add a new level of independence. When the hand rim is pushed, a drive motor takes over much of the work. It makes uphill climbs a breeze, plus there’s a power brake for downhill safety. The battery allows journeys of up to 15km.

  Choose from an extensive colour palette for the ultimate customisation.

Description

Glide’s Power Assist System on the BoostGlide is designed to help you reach new levels of independence. Operates as per normal manual wheelchair but with the assistance of a drive motor. The Power Assist System can be fitted to the Adult range of Glide LightGlide Manual wheelchairs.

Suited for most SmoothGlide set ups and may also be retro fitted if you already own a Glide LightGlide.
Steering System – Steering with hand rim operation
Brake System – Power Assist braking + manual park wheelchair brake

Specifications

Max Recommended User Weight 125kg
Chair weight 30.4kg
Rear Wheels 24? x 1 3/8? Pneumatic with Quick release
Front Castors 175mm x 40mm MCP
Overall Length 102cm
Overall Width 40cm seat depth = 60cm overall width
Seat Frame Lightweight aluminium modular frame
Seat Width 37, 40, 43, 46, 49, 52cm
Seat Depth 33, 36, 40, 43, 46, 49, 52cm
Seat Upholstery Sailcloth with adjustment on seat
Arm Rests Full Length Standard
Leg Rests Swing away and plastic footplates.
Frame Colour Choose from Glide colour range
Brakes Electromagnetic (Via Hand Rims) and manual
Battery 24V x 6.7 Ah NiMH Battery
Charger Fully Automatic Charging System
Range Not less than 15km with fully charged battery
